Quality Control & Precision Inspection

Advanced Quality Inspection & Precision Measurement Capabilities

HuaCheng provides rigorous quality control for cnc machining parts & sheet metal parts.Our precision inspection to meets your quality and tolerance requirements.

We have advanced metal parts quality inspection equipment and a variety of inspection tools,Which can be meet your customized specific needs. These include: Coordinate Measuring Machine (3CMM), Optical Comparator (Profile Projector), Hardness Tester, Salt Spray Test Equipment, Micrometers and Calipers, Angle Gauges, Gauges, Pins, Ring Gauges, and Wire Gauges. In addition,We also have an XRF mass spectrometer for verifying material composition and a variety of measuring tools (gauge blocks, telescopic gauges, hole gauges, height gauges, surface roughness gauges, feeler gauges, thread gauges, pins, etc.).

Quality inspection capabilities:

Get A Quote

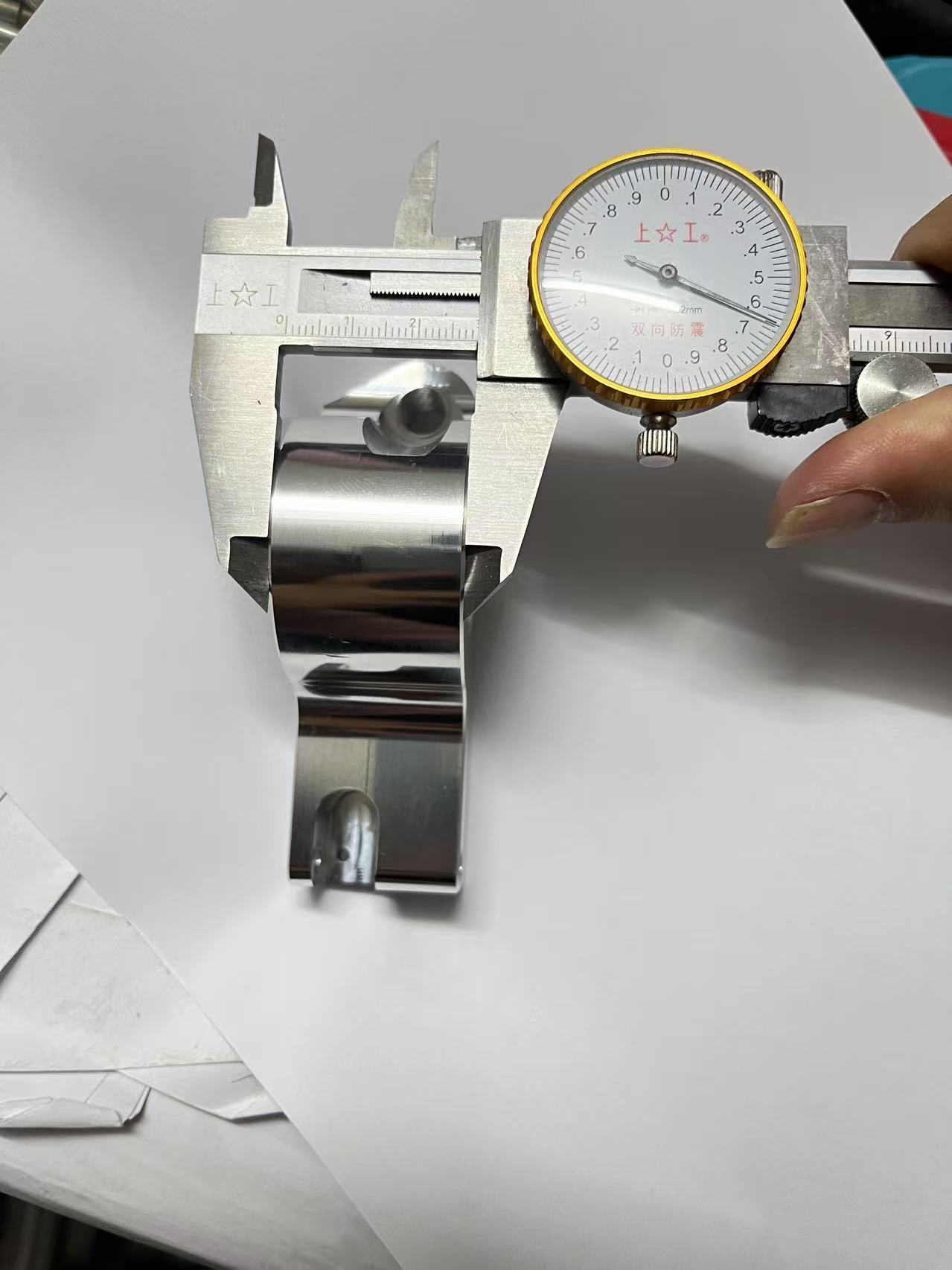

Calipers

In the realm of precision metalworking, accuracy begins with reliable measurement. At HC Metal Hardware, we seamlessly integrate high-precision digital calipers into every stage of our CNC machining and sheet metal fabrication processes. This ensures that your custom CNC components and precision sheet metal parts adhere—without compromise—to all engineering specifications, thereby guaranteeing a perfect fit during final assembly.

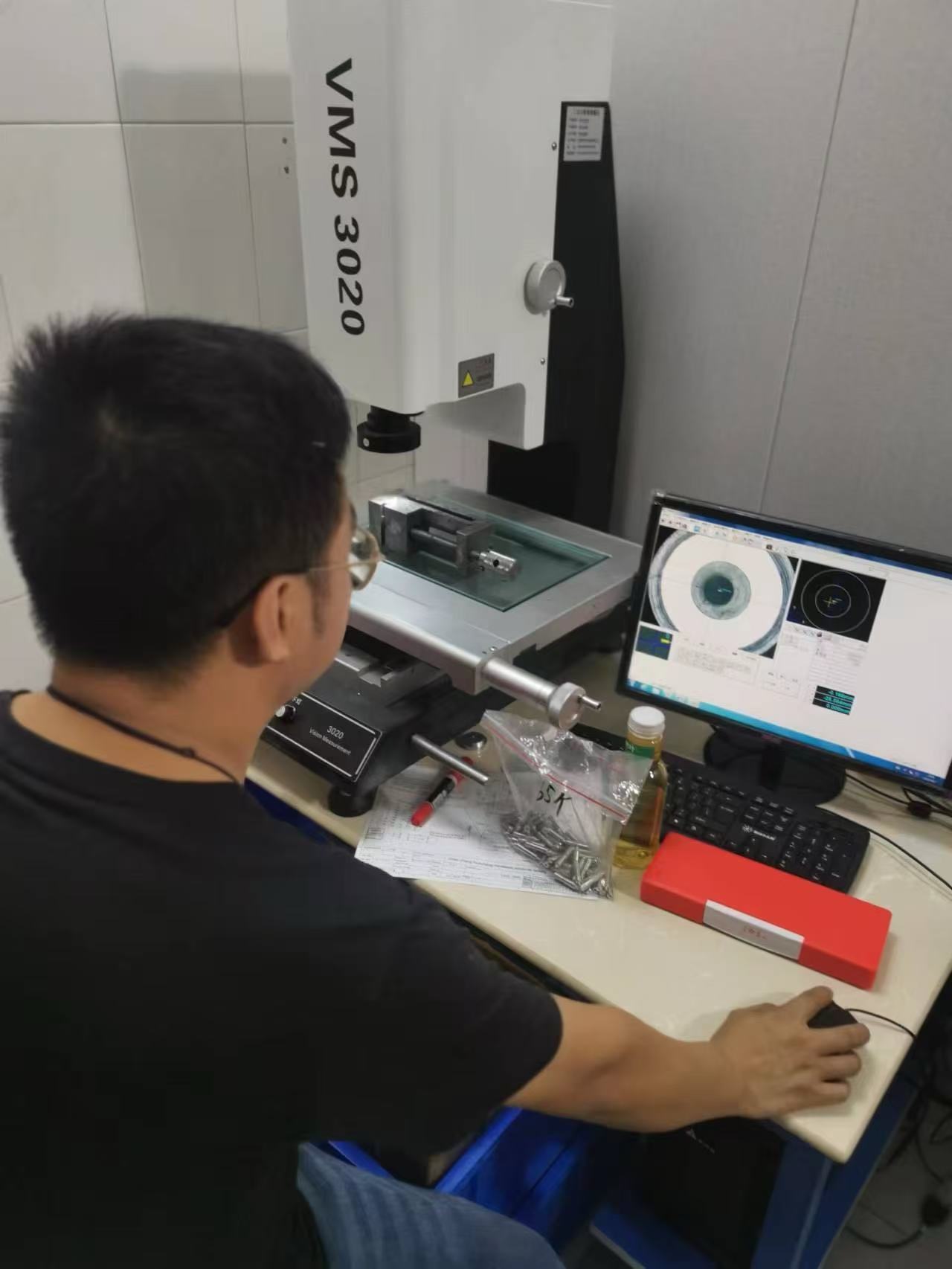

Optical comparator (profile projector)

In the field of precision metal processing, utilizing 2D vision measuring systems (optical projectors) for part inspection is a key factor in enhancing the professionalism of our quality control. This technology enables efficient, high-precision measurement of complex geometric profiles without exerting mechanical pressure or causing physical scratches—making it ideally suited for thin sheet metal components prone to deformation, as well as complex CNC-machined parts with irregular shapes. By delivering non-contact, accurate results, we ensure that your custom CNC components and precision sheet metal parts consistently meet the tightest tolerance requirements

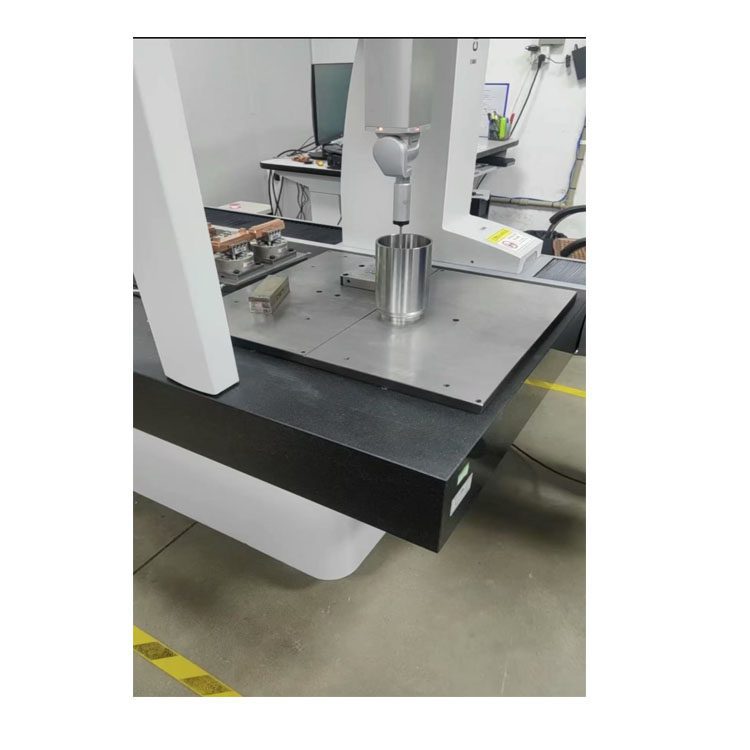

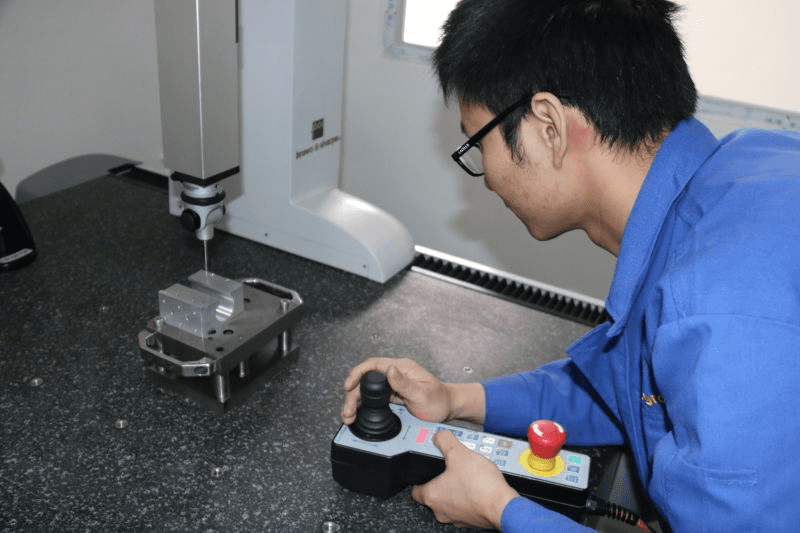

Coordinate measurement machine (CMM)

To meet the most rigorous high-precision requirements for our CNC machined parts and precision sheet metal components, we utilize advanced CMMs (Coordinate Measuring Machines) for comprehensive quality inspection. By leveraging exceptional spatial geometric measurement capabilities, detailed form and position tolerance analysis, and automated, programmable inspection processes, this technology enables precise 3D dimensional verification of complex CNC-milled features and sheet metal geometries. This rigorous approach ensures that the quality of your components not only meets but exceeds the strictest industry standards

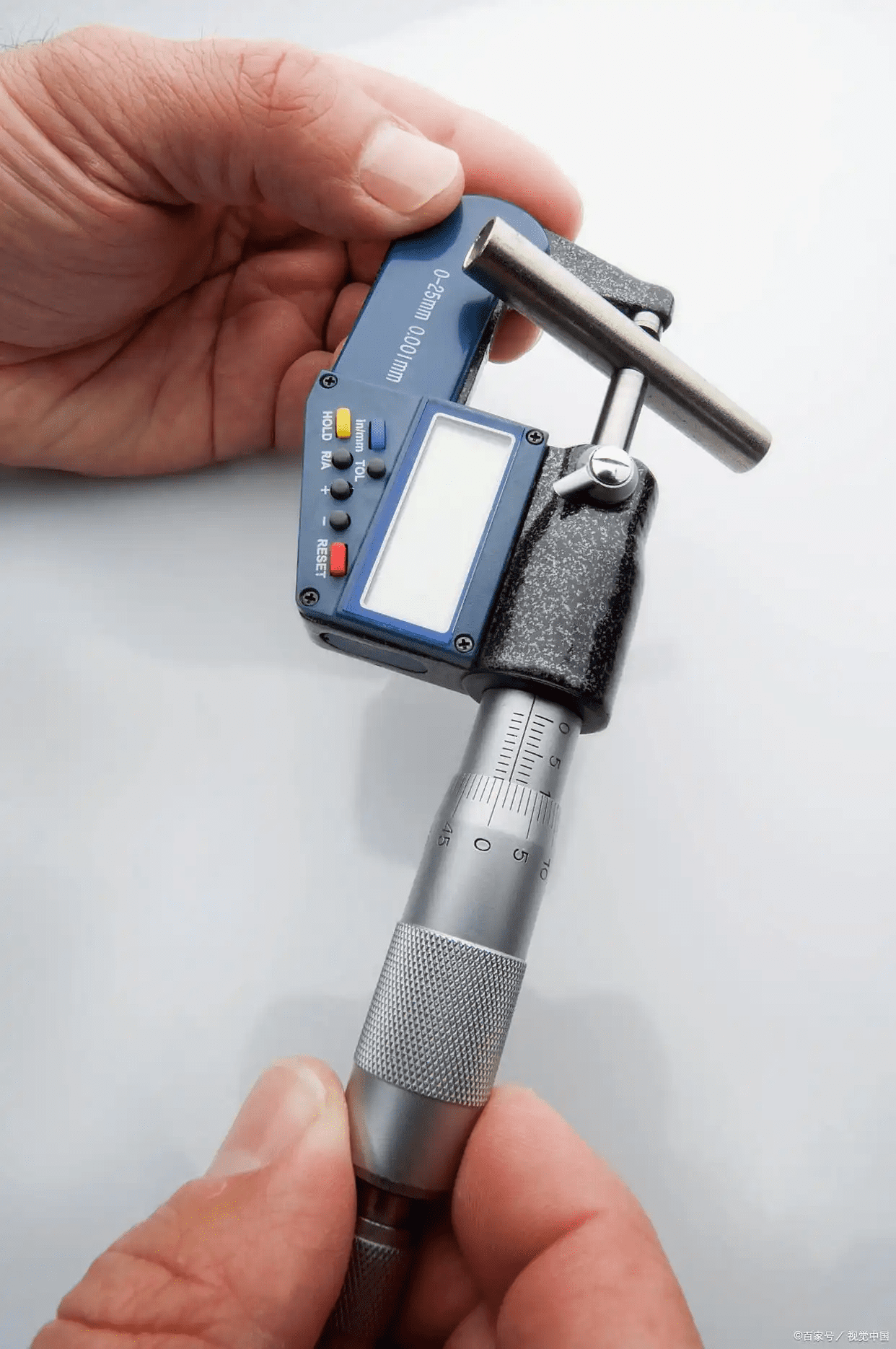

Micrometer

Micron-Level Precision: Advanced Micrometer Inspection”
“To ensure micron-level precision, we utilize professional-grade micrometers for critical dimensional control, achieving measurement accuracies down to 0.01 mm or even 0.001 mm. This rigorous approach guarantees that every CNC-machined shaft, pin, or precision component requiring tight tolerances—as well as any sheet metal assembly necessitating exact interference-fit dimensions—consistently and reliably meets your design specifications

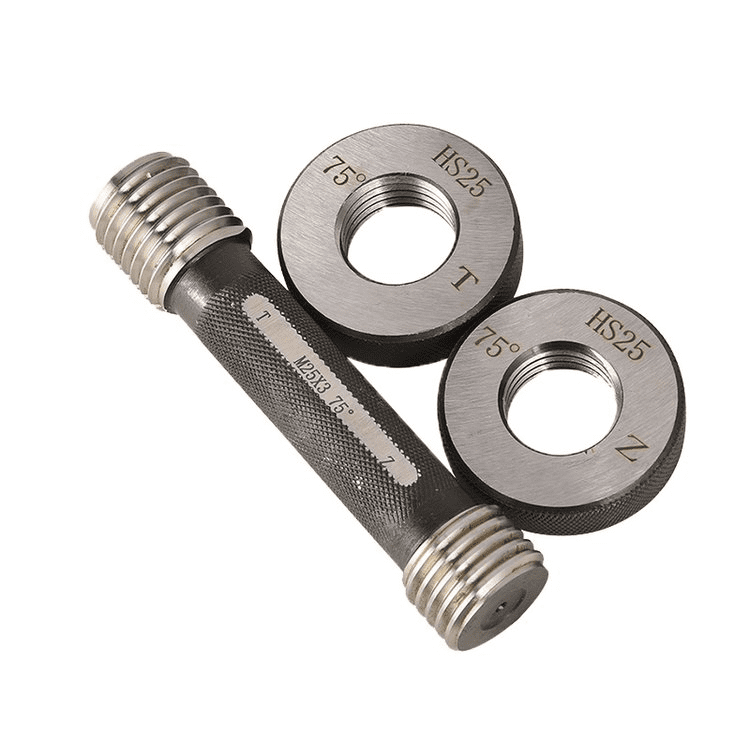

Ring and thread gauges

To safeguard assembly quality and product reliability, we utilize a comprehensive set of calibrated ring gauges and thread gauges. By leveraging these tools to eliminate human reading errors, we perform rapid, objective ‘Go/No-Go’ inspections for critical dimensions and threaded features. This rigorous verification process ensures that all CNC-machined threads and precision sheet metal fasteners fit perfectly, confirming that every component reliably meets your exact assembly requirements and engineering specifications

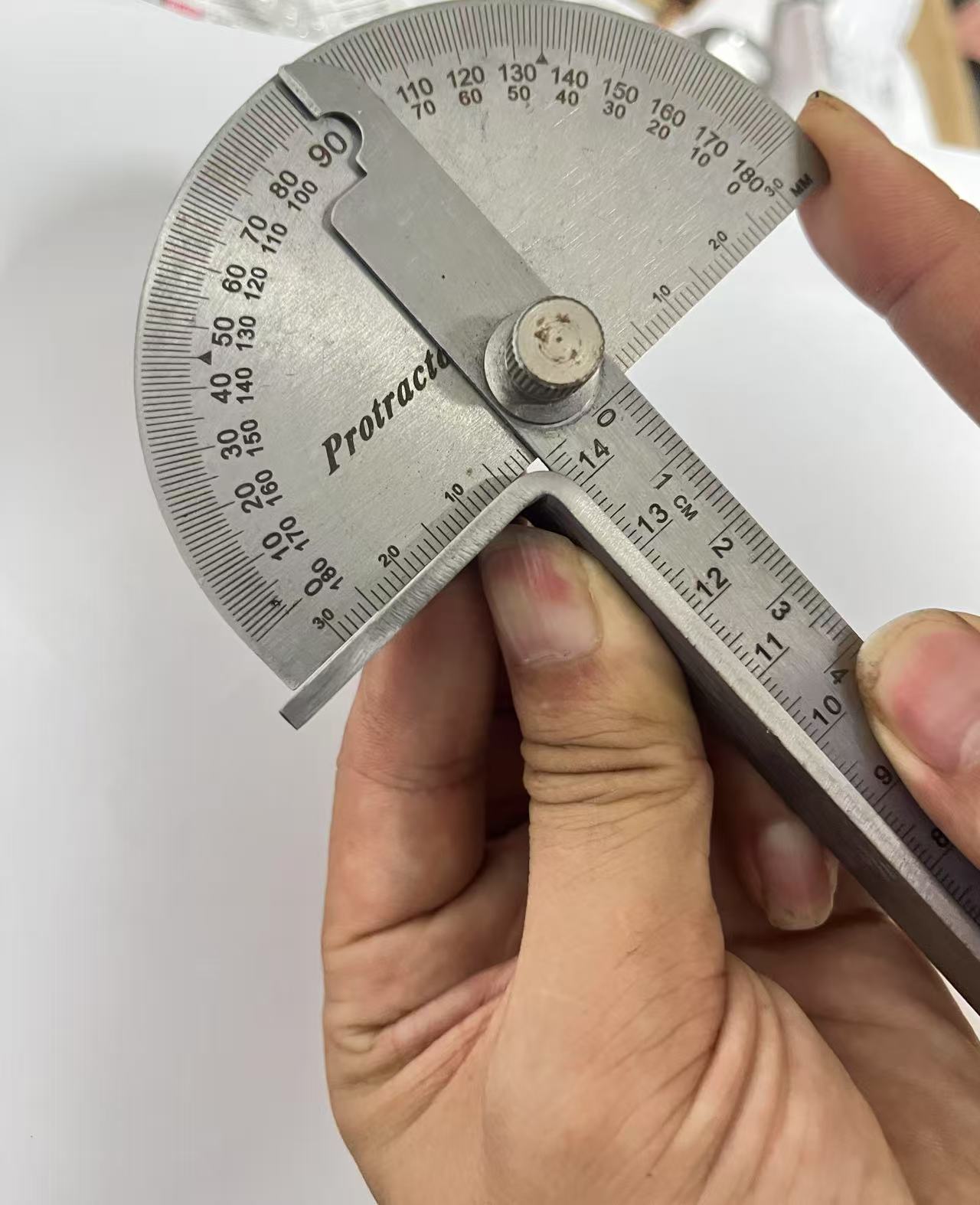

Angle Ruler

We exercise rigorous control over every geometric detail to ensure flawless component performance. By utilizing calibrated angle-measurement tools, we precisely verify all precision sheet metal components—including complex brackets, folded parts, and multi-angle assemblies. This rigorous inspection not only ensures strict adherence to your tolerance requirements but also guarantees a seamless fit for your CNC-machined parts and sheet metal assemblies during final production. Our commitment to geometric accuracy effectively minimizes potential errors, ensuring your projects are delivered ready for immediate assembly

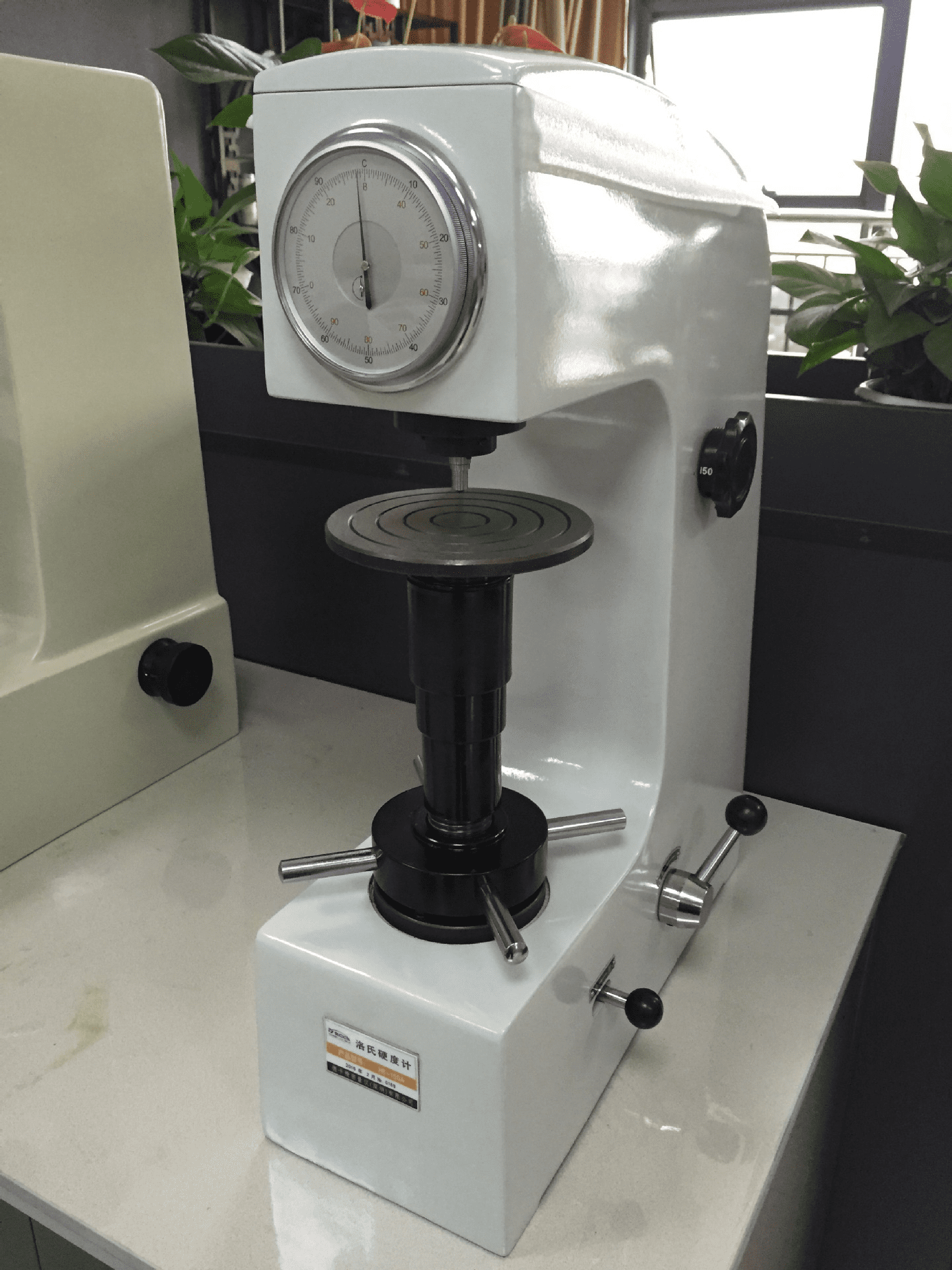

Hardness Machine

To ensure our metal parts achieve the required wear resistance and structural strength, we subject all critical components to rigorous hardness testing. This process validates the effectiveness of our heat treatment, guaranteeing that every CNC-machined component and precision sheet metal part delivers superior performance in demanding environments. Whether your project requires hardened steel for heavy-duty CNC applications or reinforced structural integrity for sheet metal fabrications, our testing ensures every part meets the highest industrial standards for reliability

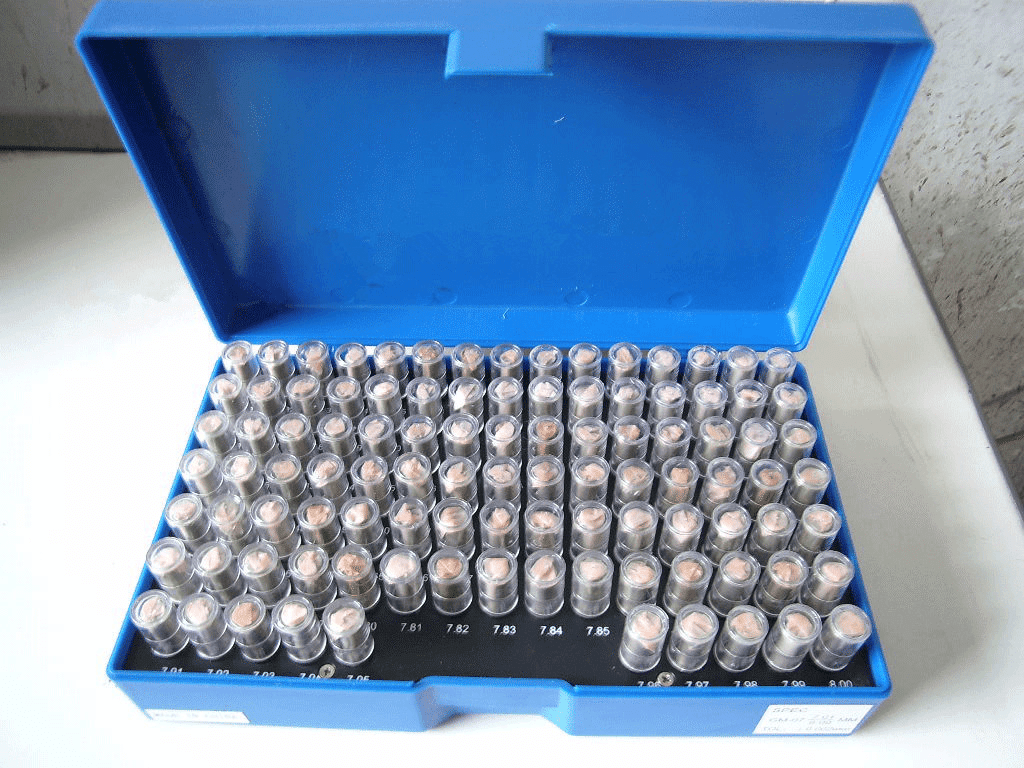

Pin Gauge

To ensure the precision of every hole location and critical interface, we employ high-precision pin gauges for rigorous Go/No-Go testing. This method allows for the efficient inspection of deep holes, micro-holes, and internal diameters in CNC-machined components—features often difficult to measure with traditional calipers. By applying these strict standards to both CNC-milled parts and precision sheet metal fabrications, we guarantee that every threaded and mating hole achieves perfect alignment. This proactive inspection process ensures seamless final assembly and eliminates potential installation risks for your CNC parts and sheet metal parts projects.

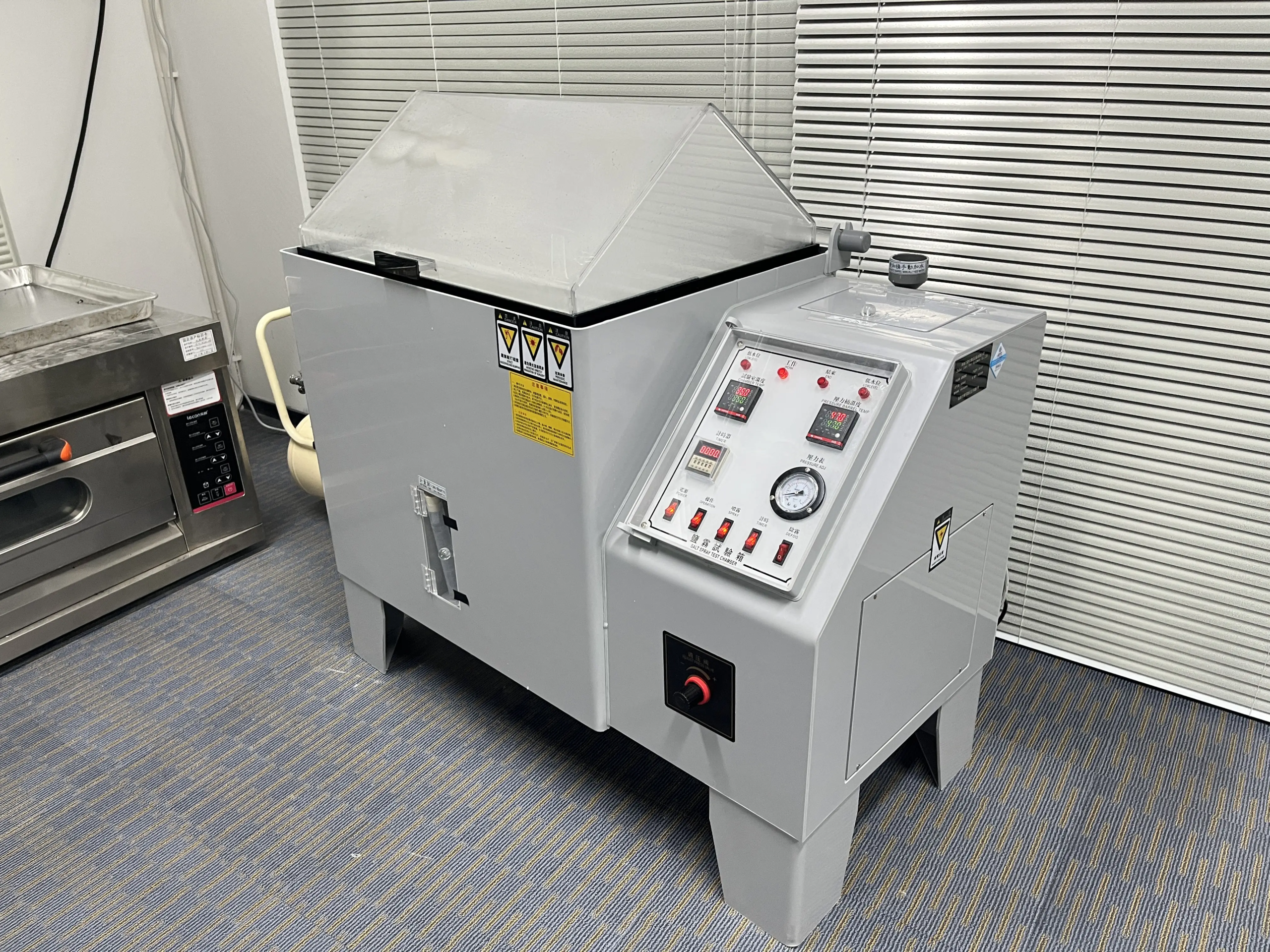

Salt Spray Testing Equipment

“For custom metal brackets, enclosures, and other components intended for long-term outdoor use, we conduct rigorous salt spray testing to verify surface integrity. Our testing protocols are tailored to your specifications—ranging from 24-hour baseline tests to 500-hour extended durability cycles.
To guarantee exceptional lifespan, we subject finished CNC-machined parts and precision sheet metal fabrications to accelerated corrosive environments. This process ensures that your custom components—whether finished with specialized powder coating, anodizing, or plating—maintain both their structural integrity and aesthetic appeal, even when exposed to high-humidity or harsh outdoor conditions. Rely on our commitment to quality for reliable performance across all your CNC parts and sheet metal parts projects

Precision Quality Control for CNC Machining& Sheet Metal Fabrication

Innovative Solutions for Growth

Ensuring quality control from the source.
This is the first line of defense to prevent defective products from entering the production line

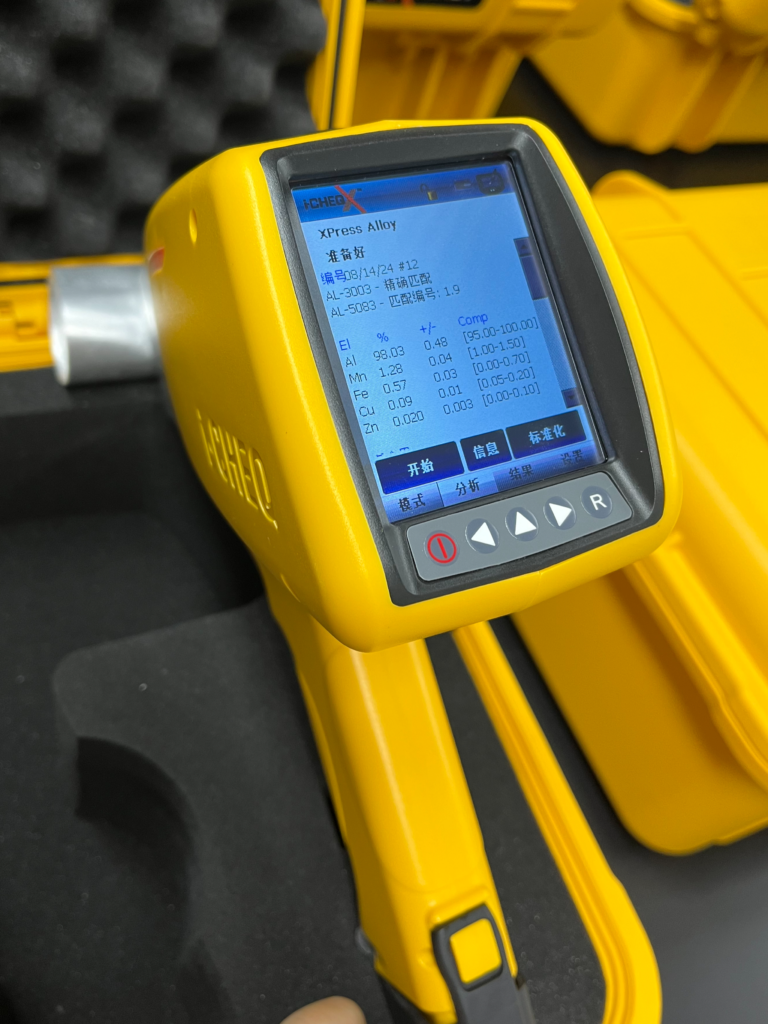

Incoming Quality Control (IQC)

We primarily review material reports, certification documents, and other relevant documentation provided by our material suppliers. Furthermore, we conduct sampling inspections of key performance indicators—such as chemical composition and mechanical properties—to ensure that all materials are fully suitable for our CNC precision machining and custom sheet metal fabrication processes, and that they comply with established industry standards and client requirements.

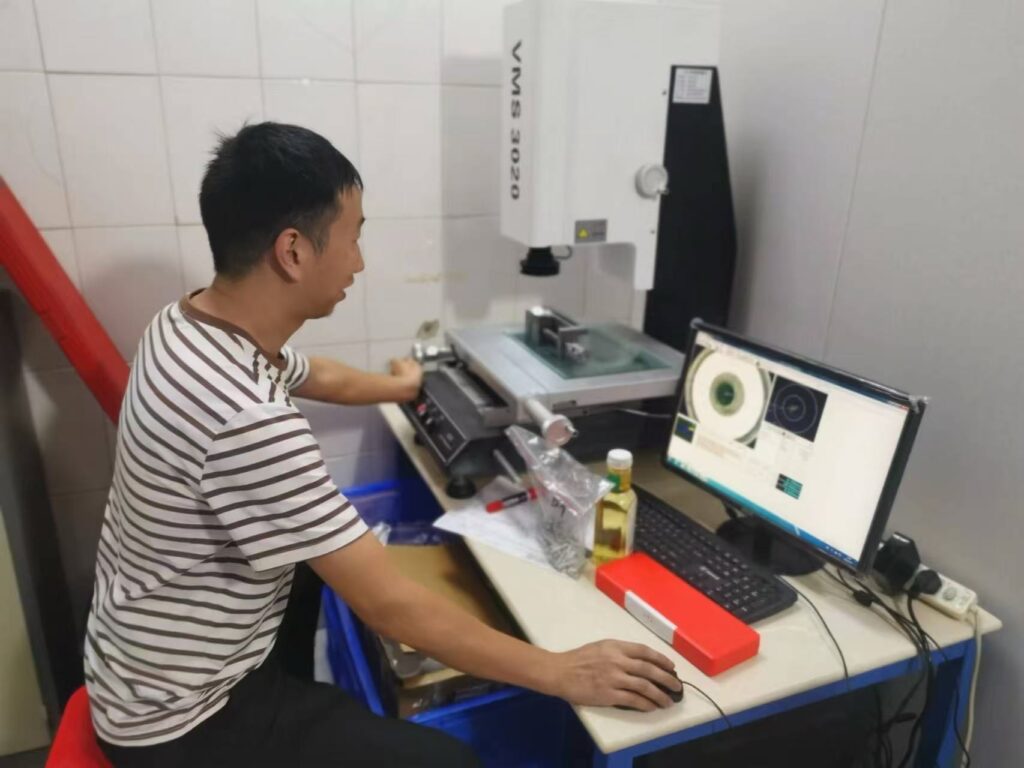

First Article Inspection

Rigorous First Article Inspection (FAI) for CNC Machining & Sheet Metal Fabrication”
“At HC Metal Hardware, we implement a strict First Article Inspection (FAI) process as the foundation of our quality assurance. Before commencing mass production, our quality team performs a 100% dimensional verification of the initial sample against your engineering drawings. This multi-party review—involving operators, team leaders, and quality inspectors—meticulously checks critical features for both CNC-machined components and precision sheet metal parts. From verifying complex CNC-milled tolerances to ensuring accurate sheet metal bending angles, hole diameters, and thread integrity, this rigorous process guarantees that every specification is met. Official mass production is only authorized once the first article has been fully approved, ensuring consistent quality throughout your entire order.

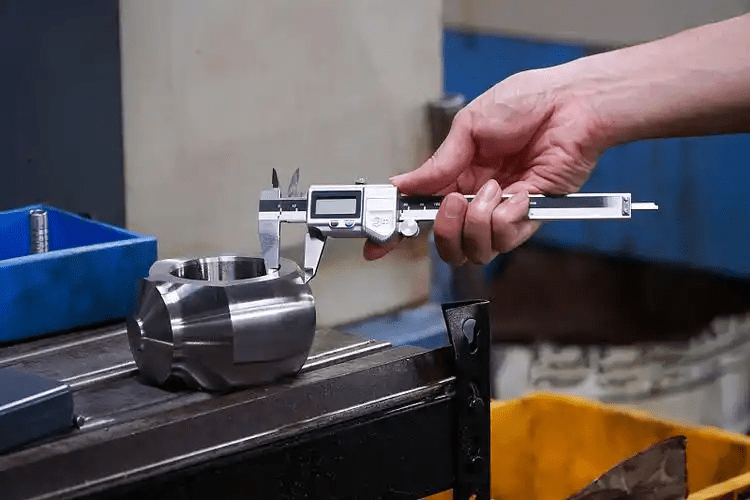

In-Process Quality Control (IPQC)

In-Process Production Monitoring for CNC Machining & Sheet Metal Fabrication”
“We implement real-time production monitoring as a fundamental pillar of our quality assurance strategy for both CNC precision machining and custom sheet metal fabrication. By continuously tracking critical parameters during manufacturing, our team identifies and corrects deviations instantly. This rigorous, proactive approach prevents mass defects and ensures that every CNC component or sheet metal part adheres strictly to your specified tolerances

Final Quality Control (FQC/OQC)

Final Outgoing Quality Control (OQC): Ensuring Zero-Defect Delivery”
“Our OQC process acts as the final quality barrier, ensuring every batch of CNC machined components and precision sheet metal parts meets your exact specifications.
Inspection Scope:
We perform rigorous checks on surface integrity, dimensional tolerances for CNC-milled features and sheet metal geometries, and packaging compliance to ensure safe global transit.
Traceability & Excellence:
Each batch undergoes a final audit with meticulous documentation. By integrating customer feedback into our quality criteria, we ensure your CNC and sheet metal projects are delivered to the highest industry standards.”
