CNC Milling Services

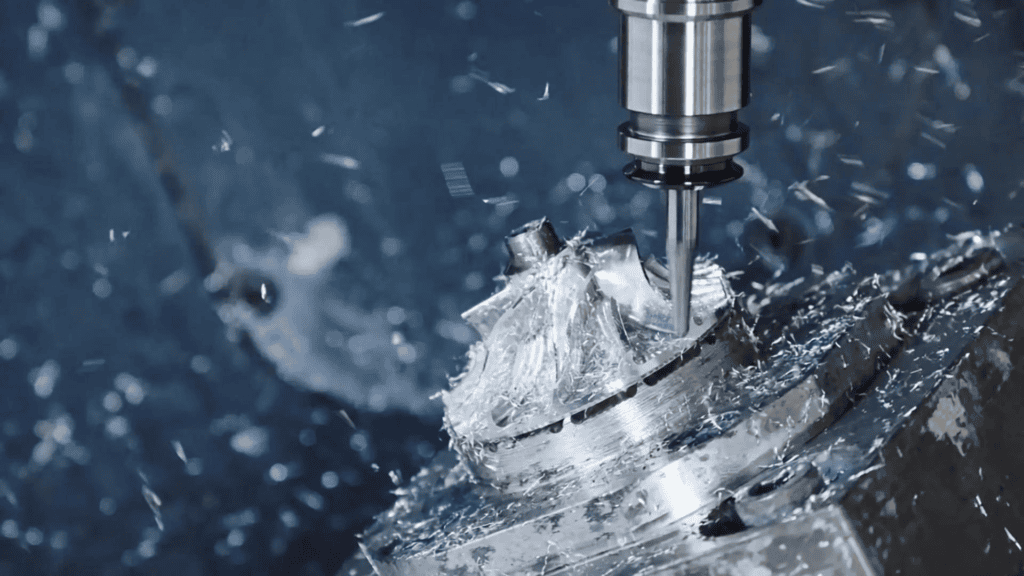

Are you looking for machining services for parts with complex structural shapes such as squares and combinations of circles,CNC milling offers high precision and excels at machining planes,grooves,cavities,complex curved surfaces, contours,and other shapes.The high-speed rotating milling cutter can meet your needs,We offer advanced 3 axis and 5-axis machining capabilities.

Get Instant Quote

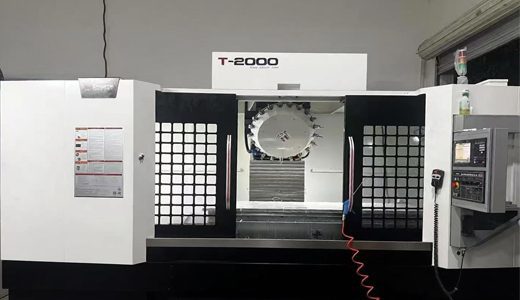

Custom precision cnc milling machining service

Advantages for 3- and 3+2-axis CNC milling

3-axis &3+2 axis CNC milling is suitable for both prototyping custom parts in small batches and mass-producing standardized components. Thanks to the cost-effectiveness of the equipment, it offers the best value for machining conventional parts in small to medium volumes, covering a wide range of common applications such as structural hardware, standard mold cavities, shaft components, and basic housing parts.

Maximum part size for 3 axis&3+2 axis Precision CNC milling Machining

Material Type	Metric units	Imperial units	Instructions for Use
Maximum machining dimensions for soft metals/plastics	2000×1500×200mm	78.7×59.0×7.8in	Suitable for aluminum, copper, brass, and various non-metallic materials.
Maximum machining dimensions for hard metal	1200×800×500mm	47.2×31.4×19.6in	Suitable for stainless steel, tool steel, alloy steel, and other steel materials.
Minimum machinable feature size	Ø0.50mm	Ø0.019in	Minimum slot width and hole diameter for standard finishing operations
Standard machining tolerances	±0.01mm	±0.0004in	General accuracy level of standard 3-axis equipment
Maximum load capacity of the workbench	1000kg	2204.6lbs	Meets the clamping requirements for large, heavy steel components.

Advantages for 5 Axis CNC milling

5-axis milling machines are capable of machining complex surfaces and difficult-to-machine structures—such as deep cavities, steep walls, inclined holes, and complex spatial contours—enabling the completion of entire processing sequences (including milling, drilling, and tapping) in a single setup.

Maximum part size for 5 Axis Precision CNC milling Machining

Material Type	Metric units	Imperial units	Instructions for Use
Maximum machining dimensions for soft metals/plastics	2000×1500×200mm	78.7×59.0×7.8in	Suitable for the integrated machining of complex curved surfaces and multi-faceted geometries on aluminum, copper, brass, and various non-metallic materials.
Maximum machining dimensions for hard metal	1200×800×500mm	47.2×31.4×19.6in	Precision 5-axis simultaneous milling suitable for hard metals such as stainless steel, tool steel, and alloy steel.
Minimum machinable feature size	Ø0.30mm	Ø0.012in	Minimum slot width and micro-hole machining capabilities in 5-axis side milling and tilting-head machining scenarios.
Standard machining tolerances	±0.008mm	±0.0003in	General precision machining accuracy level of 5-axis simultaneous machining equipment

Material Option for CNC Milling Services

Soft metal	Hard metal	Plastic materials
Aluminum, copper, brass	Stainless steel, tool steel, alloy steel, titanium alloy, superalloy	Various engineering plastics such as PMMA, PEEK, PEI, PPS, ABS, PA (nylon), and PI.
